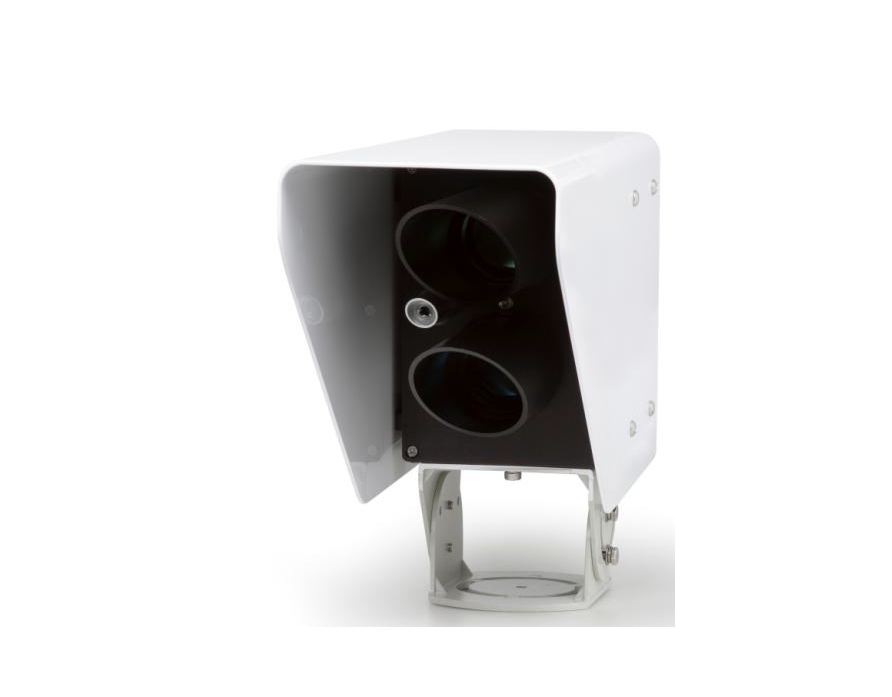

HY-RSS11E

Professional Non-Contact Road State Sensor

A high-performance non-contact road surface sensor for safety-critical applications. Measures water, ice and snow thickness up to 10 mm and supports a wide 2–13 m installation range — ideal for bridges and elevated roadways.

0–10 mmBridges / elevatedMODBUS-RTU

The professional-grade head in the HY-RSS road state family. The 2–13 m measuring range covers high-mast gantries and bridge installations where a closer-range sensor would not reach the deck. Reports six road states, three layer-thickness channels (water / ice / snow), grip level and surface temperature over a single MODBUS-RTU link.

Specification

Technical parameters

Technical Parameters
Applicable road material
Concrete and asphalt
Distinguishable road state
Dry, Moist, Wet, Snow, Ice, Slush
Installation
Pole / gantry / bridge
Measure distance (c)
2 m – 13 m
Measure area diameter (d)
c:d = 30:1 (typical 20 cm)
Installation angle
30 – 90°
Water range
0 – 10 mm, resolution 0.01 mm
Ice range
0 – 10 mm, resolution 0.01 mm
Snow range
0 – 10 mm, resolution 0.01 mm
Water / Ice / Snow accuracy
±1 mm
Grip level
0 – 0.82, resolution 0.01
Surface temperature
−40 ~ 70°C, accuracy ±1°C
Operating temperature
−40 ~ +70°C
Operating humidity
0 – 100%
Power supply
12 – 24 VDC
Serial output
RS232 or RS485
Formats
Active ASCII output or MODBUS-RTU
Lens contamination compensation
Automatic
Protection grade
IP65
Dimensions
400 (L) × 136 (W) × 220 (H) mm
