All Sky Imager
An all-sky automatic imaging system with a 175° viewing angle. A clear fisheye lens with a 5 MP / 20 MP high-quality CMOS sensor delivers up to 2560 × 1920 / 30 fps imagery for cloud-form and cloud-quantity processing.
SC100
SC100

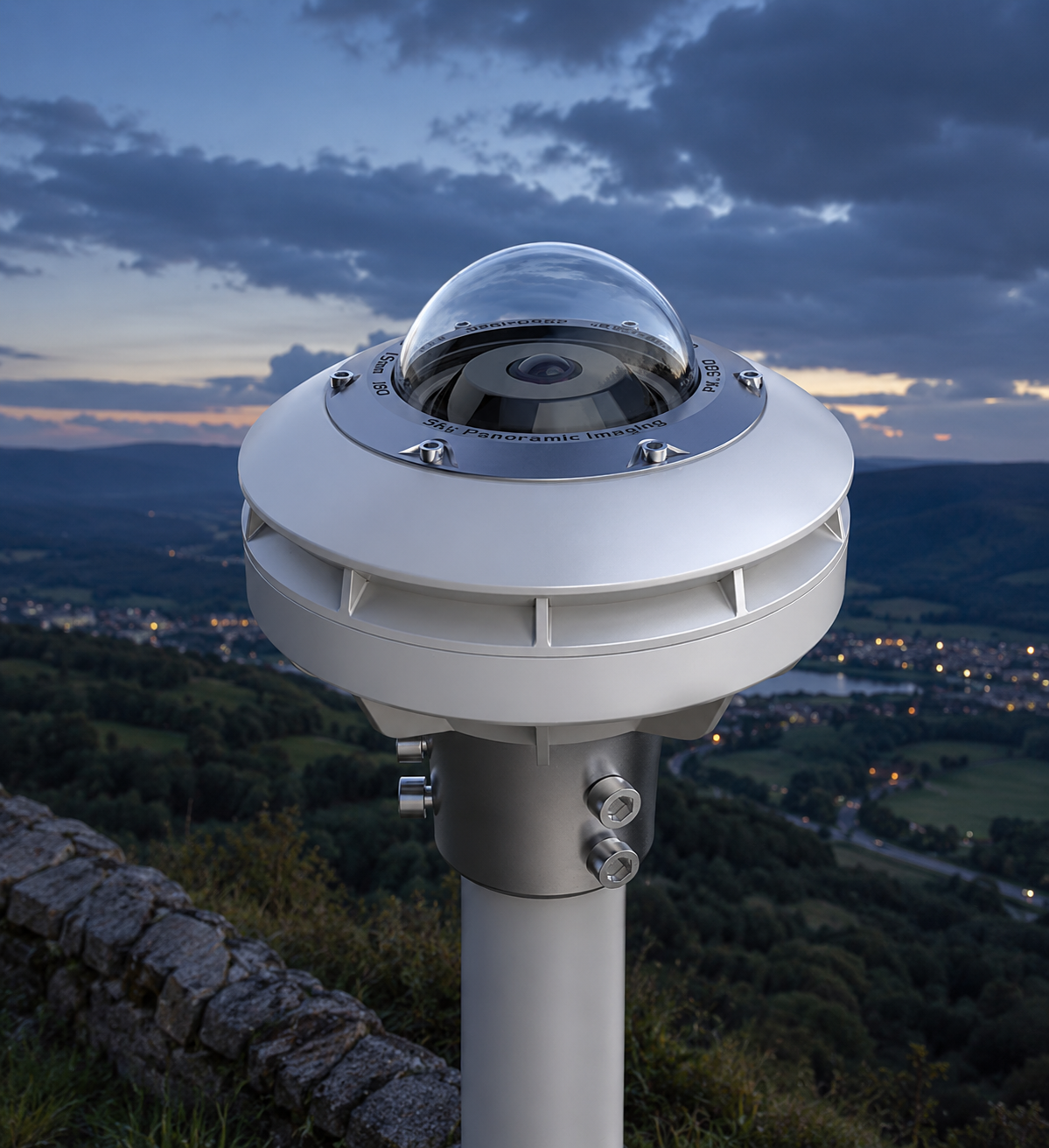

SC100 is an all-sky automatic imaging system with a 175° viewing angle. It uses a clear fisheye lens with a 5 million / 20 million pixel high-quality CMOS sensor, which can output a maximum of 2560 × 1920 at 30 fps.
SC100 has a dynamic analysis function that clearly records the distribution of cloud form and cloud quantity in daylight conditions, and the recorded data can be automatically saved for comparison and analysis. Recordings can also be uploaded to the cloud network to identify the cloud information through AI algorithms. It can be widely used in meteorology, civil aviation, transportation, marine research, smart-city and other fields.
Specification
Technical parameters
Technical Parameters
Sensor
5 million / 20 million pixel high-quality CMOS sensor
Main stream resolution (50 Hz)
25 fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Main stream resolution (60 Hz)
30 fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Storage
Micro SD/SDHC/SDXC card (128 GB) offline local storage; NAS (NFS, SMB/CIFS)
Interface protocol
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Network protocol
TCP/IP, UDP, ARP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Communication interface
Ethernet, WiFi
Mounting base size
φ50 / 52 mm
Encryption
64 / 128-bit WEP, WPA/WPA2, WPA-PSK / WPA2-PSK, WPS
Operating temperature and humidity
−10°C ~ 40°C, humidity < 95% (no condensation)
Power supply
DC 12 V ±25% / PoE (802.3af)
Power consumption
6.7 W max
IP class
IP67
Dimensions
160 mm × 160 mm × 187 mm
Weight
1900 g
Certifications
CE
