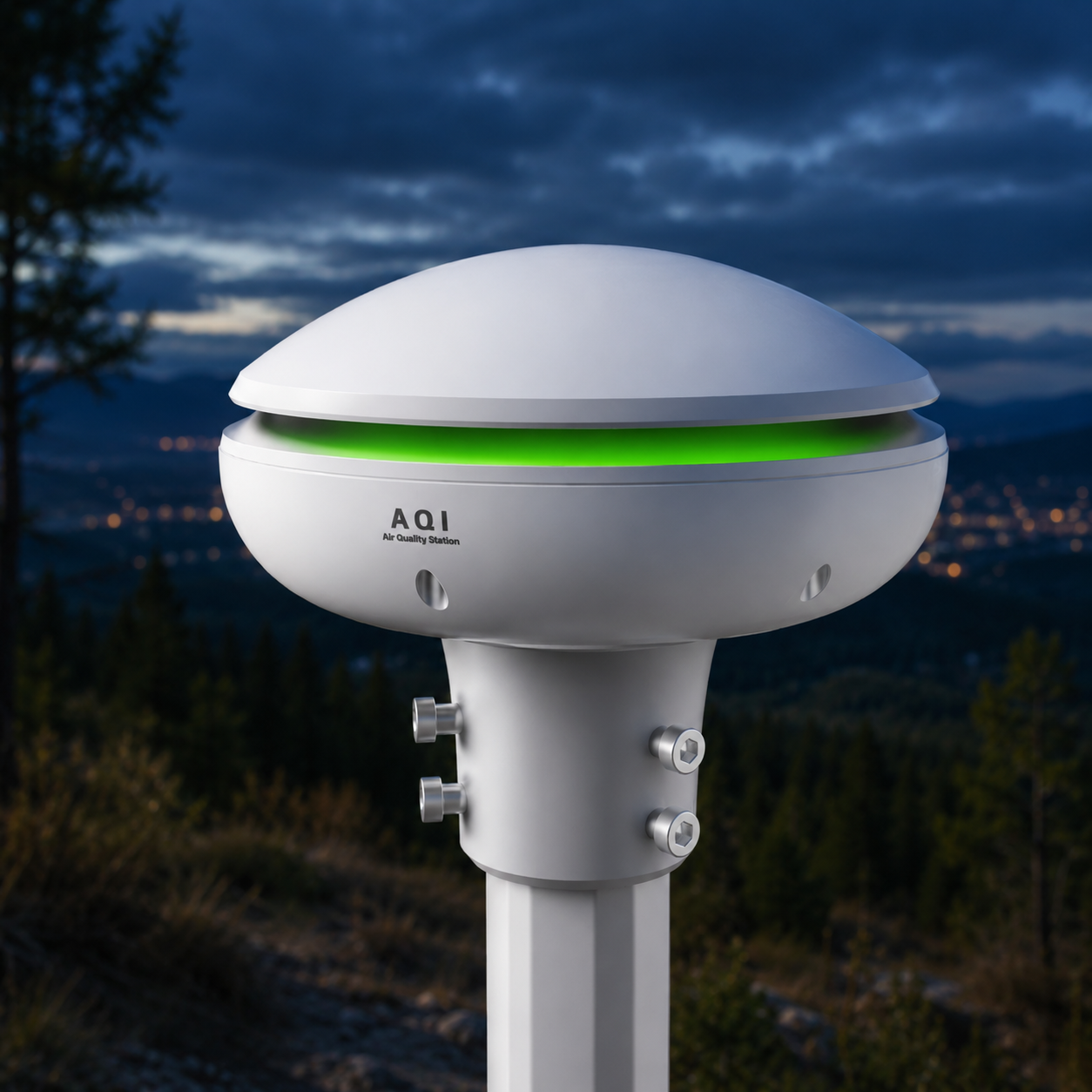

AQS3000

Micro Air Quality Station

A miniaturized professional atmospheric composition station that monitors CO, SO₂, NO₂, O₃, PM2.5, PM10 and other atmospheric components. RGB breathing lighting intuitively reflects air quality, and a modular digital sensor design makes replacement and maintenance straightforward.

SO₂ / NO₂ / O₃ / COPM2.5 / PM10 / TSPRGB breathing light

The AQS3000 is a micro air-quality station with an exquisite design. It adopts the modular, digital and solid-state design concept for its sensors, making various configurations and disassembly easy. Six key air-quality parameters are monitored: electro-chemical sensors handle SO₂, NO₂, CO and O₃, while an optical particle counter delivers PM2.5 and PM10 — together pairing reference-grade meteorology with continuous gas and particulate readings.

AQS3000 can be widely used in smart-city networks, road weather, agriculture, forestry and plant protection. An RGB breathing light intuitively reflects the current air quality, and the optimized air duct makes sampling more sensitive and accurate.

Specification

Technical parameters

Gases
SO₂ measuring range
0 ~ 5 ppm
SO₂ resolution
0.01 ppm
SO₂ repeatability
< 2%
SO₂ accuracy
±5% F.S
NO₂ measuring range
0 ~ 5 ppm
NO₂ resolution
0.01 ppm
NO₂ repeatability
< 2%
NO₂ accuracy
±5% F.S
O₃ measuring range
0 ~ 5 ppm
O₃ resolution
0.01 ppm
O₃ repeatability
< 2%
O₃ accuracy
±5% F.S
CO measuring range
0 ~ 10 ppm
CO resolution
0.01 ppm
CO repeatability
< 2%
CO accuracy
±5% F.S
Particulate matter
Particle measuring range
0.3~1.0 µm; 1.0~2.5 µm; 2.5~10 µm; >10 µm
Particle counting efficiency
50% @ 0.3 µm; 98% @ >0.5 µm
PM2.5 / PM10 effective range
0 ~ 1000 µg/m³
PM2.5 / PM10 maximum range
≥ 5000 µg/m³
TSP effective range
0 ~ 2000 µg/m³
TSP maximum range
≥ 10000 µg/m³
Particulate matter mass concentration resolution
1 µg/m³
Particulate matter measurement consistency (PM2.5)
±10 µg/m³ @ 0~100 µg/m³; ±10% @ 100~1000 µg/m³
Particulate matter measurement consistency (PM10)
±15 µg/m³ @ 0~100 µg/m³; ±15% @ 100~1000 µg/m³
System & interfaces
Single response time
< 2 s
Volume
0.1 L
Communication interface
RS232, RS485, SDI-12, Bluetooth / WiFi / 4G
Power supply
7 ~ 24 VDC
Operating environment
−30°C ~ 70°C, 10%RH ~ 95%RH (no condensation)
Dimensions
φ185 × 154 mm
